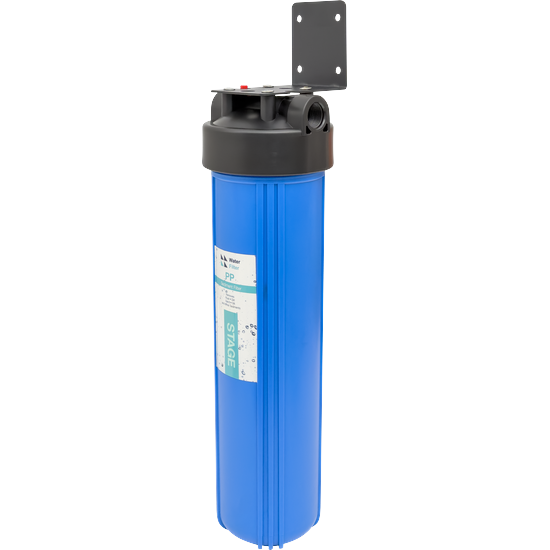

1 Stage 20 inch Big Blue filtration system - Steel Powder Coated Bracket - Black

This 1-stage Big Blue filtration system is designed for high-volume sediment removal from borehole and municipal water supplies. Built with a durable powder-coated steel bracket and fitted with a 50-micron sediment filter, it provides clear, cleaner water for residential and light commercial use. The system operates without electricity and installs neatly against a wall—ideal for garages or shaded outdoor areas.

Key Features:

• Single-stage 20-inch Big Blue filtration system

• Removes sediment, rust, sand, silt, and other visible particles from water

• Improves water clarity and colour without compromising flow rate

• Compatible with borehole and municipal water (borehole use requires water analysis submission)

• Strong powder-coated steel mounting bracket for corrosion-resistant wall installation

• Easy to maintain using standard 20" x 4.5" replacement cartridges

• No electricity needed to operate

Stages of Water Filtration:

• Stage 1: 50-micron sediment filter removes coarse particles such as mud, sand, rust, and silt, improving the appearance and quality of your water

Technical Specifications:

• Maximum pressure: 6 bar

• Maximum flow rate: 2500 litres per hour

• Port size: 25 mm (1 inch BSP)

• Recommended cartridge replacement: Every 6 to 12 months depending on water source and usage

What’s Included:

• 1 x 20-inch Big Blue filter housing

• 1 x 50-micron sediment filter cartridge

• 1 x Powder-coated steel mounting bracket (black) with screws

• 1 x Filter housing wrench for easy maintenance

This Big Blue system with a powder-coated steel bracket offers a reliable first stage of filtration to protect your home or business water system from damaging sediment. Ideal for a wide range of applications, from household use to pre-filtration for irrigation or commercial needs.

Consumables:

50-micron, 20 Inch big blue sediment filter

System comes assembled ready for installation as shown in picture.

Disclaimer: Big blue filters are intended for fine filtration and limits apply to water quality and quantity. Have your water tested before installing a big blue filter to ensure that it is the right solution. It is important to note that the volume of water put through the unit as well as the quality of the water will greatly influence the lifetime of the filters.
