Brass Solenoid 24V/DC - 10mm thread

Overview:

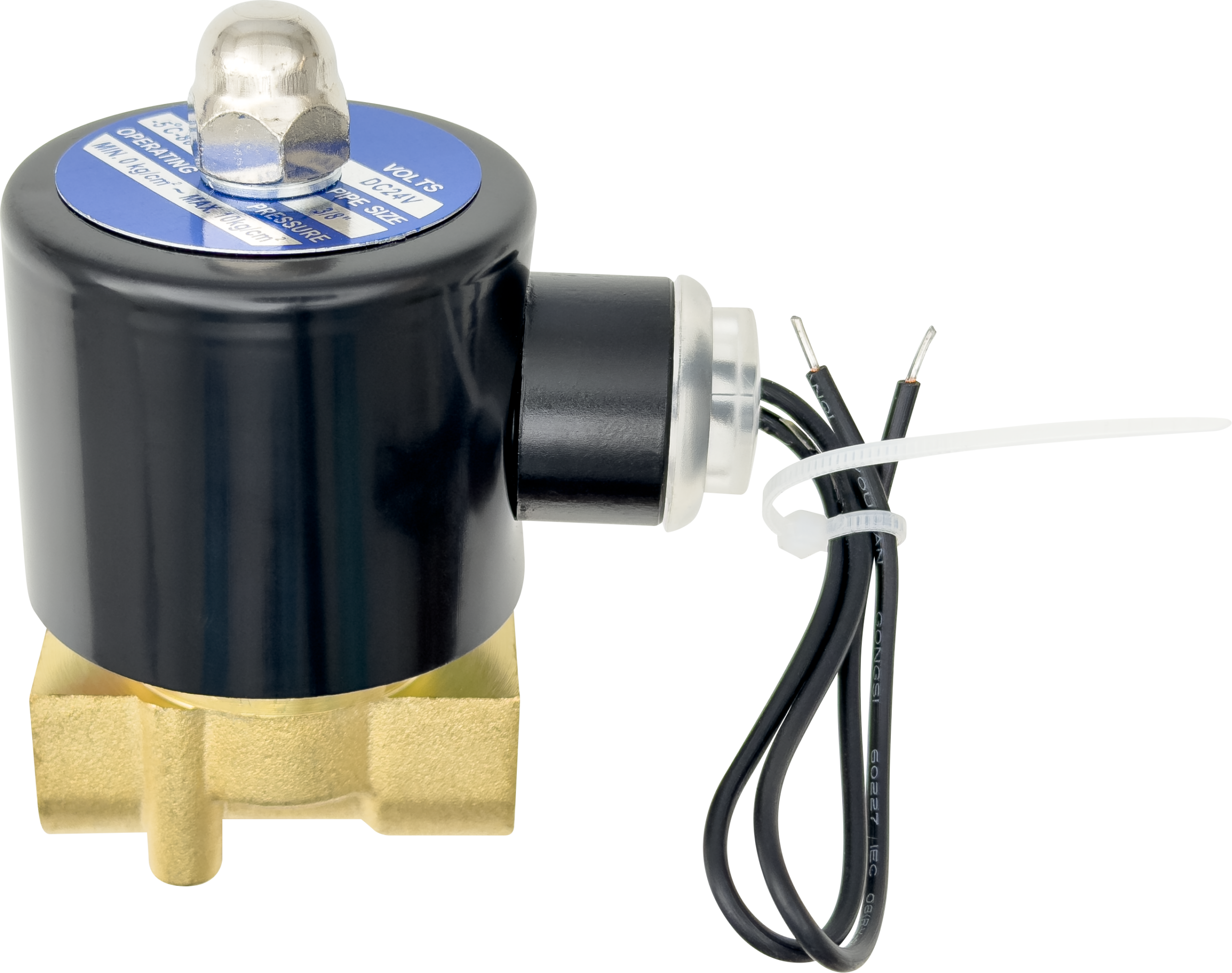

The 2W-040-10 is a 3/8" normally closed, direct-acting diaphragm solenoid valve with a brass body. It is built to switch water, air, oil and gas on and off automatically in pipeline systems. It works from 0 pressure, so no minimum line pressure is needed to open it. That makes it well suited to water treatment, reverse osmosis (RO) and general fluid-control setups.

Key Features:

Zero-Pressure Operation
Direct-acting diaphragm design opens and closes without needing line pressure.

Normally Closed (NC)
Stays closed when de-energised, helping prevent accidental leaks or flow.

Durable Brass Body
Corrosion-resistant brass construction with a flat diaphragm seal for long service life.

Multi-Media Compatibility
Suitable for water, air, oil and gas with viscosity under 20 cSt.

Flexible Voltage Options
Available in 12V or 24V DC and 110V or 220V AC coil versions (±10%).

Flexible Installation
Compact body with 23 cm flying leads. It can be mounted at any angle, though it works best with the horizontal pipe kept upward.

Technical Specifications:

Compatible Power Supplies:

12V or 24V DC supply matched to the coil version (check the current draw against the coil rating)
110V or 220V AC mains supply for AC coil versions

Applications:

The 2W-040-10 is suited to:

• Water control in RO and water purification systems
• Water treatment, desalination, and food and beverage processing
• Automatic control of air, oil and gas lines
• Replacement or spare valve for existing installations

Please note:

• This valve is sold separately from any power supply, fittings or pump.
• Check that the coil voltage matches your supply before use.
• Do not use it with media above 80 °C, with viscosity above 20 cSt, or above the rated pressure.
• Confirm the thread type (BSP/G or NPT) matches your fittings.
• A normally open version of this model also exists, so confirm you have the normally closed one.
