Inflow solenoid valve 1/4 inch

Overview:

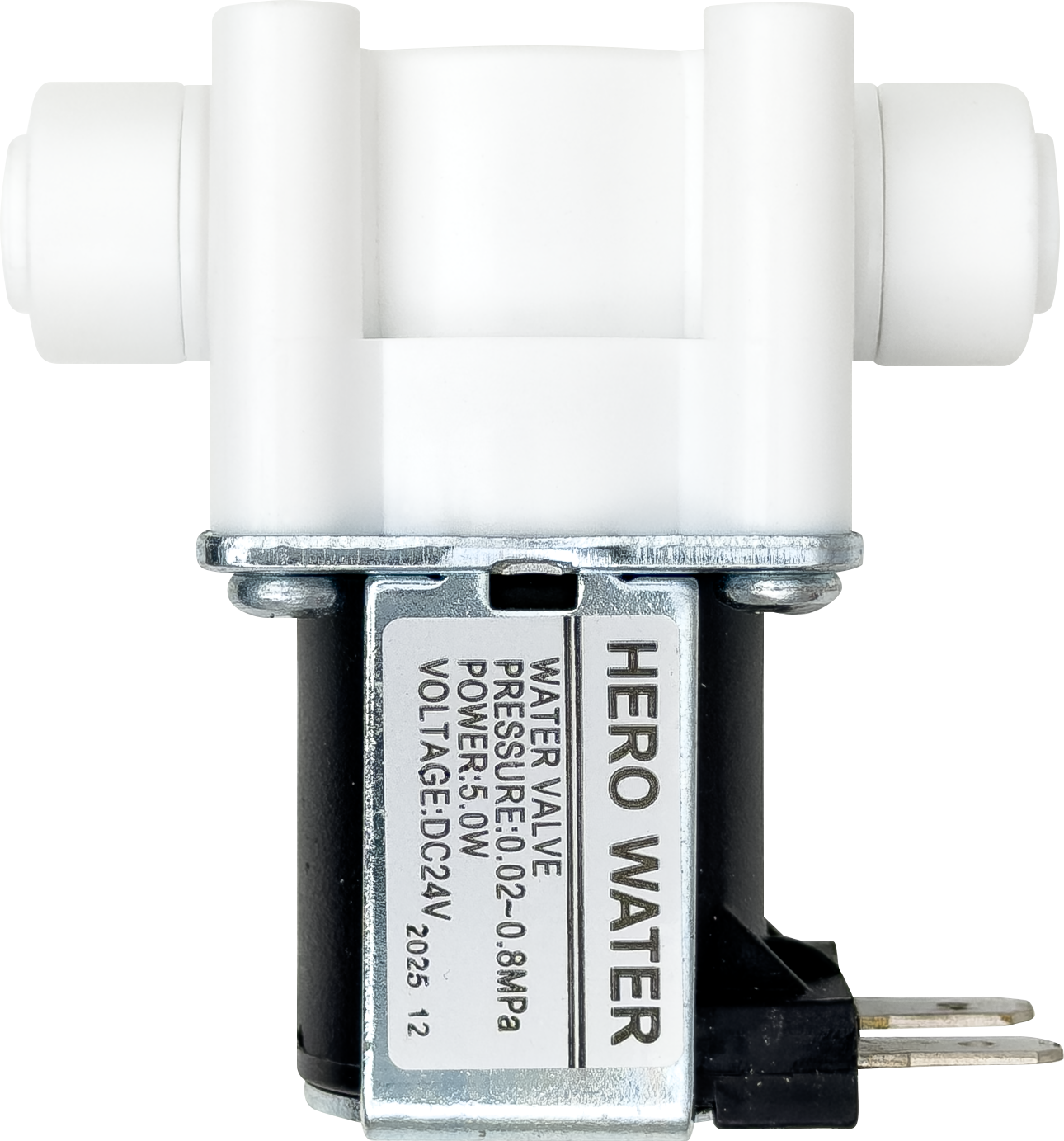

The BG-SP17-1/4 is a 24V DC inlet (feed water) solenoid valve with 1/4" quick connect fittings. It controls the feed water in a domestic reverse osmosis purification system. It opens when the system starts and cuts off the water when the system stops. That makes it a simple, compact way to automate the water supply to a domestic RO unit.

Key Features:

Automatic Feed Water Control
Opens the water supply when the RO system starts and shuts it off when the system stops.

Normally Closed (NC)
Stays closed when de-energised, so water does not flow into the system when it is off.

24V DC Operation
Runs from a standard 24V DC supply with low power draw.

1/4" Quick Connect Fittings
Inlet and outlet take 1/4" tubing directly for simple, tool-free installation.

Compact and Lightweight
Small body of about 5 × 3 × 6 cm and 100 g, easy to fit inside RO housings and under-sink units.

Technical Specifications:

Compatible Power Supplies:

• 24V DC supply with enough current for the 5.0 W coil
• Domestic RO systems with 1/4" feed tubing

Applications:

The BG-SP17-1/4 is suited to:

• Feed water control in domestic reverse osmosis systems
• Water purifiers and under-sink filtration units
• Replacement or spare inlet valve for existing RO installations

Please note:

• This valve is sold separately from any power supply, tubing or RO unit.
• Check that your supply is 24V DC before connecting. It is not suitable for 12V or AC supplies.
• Keep the water pressure within 0.02 to 0.8 MPa.
• It is designed for domestic RO feed water, not for hot water or oils.
• Use 1/4" tubing that matches the quick connect fittings.
